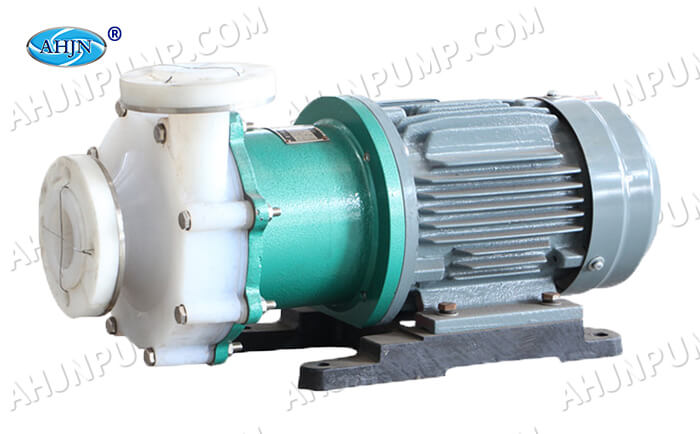

CQB micro fluoroplastic magnetic pump

CQB micro fluoroplastic magnetic pump

CQB micro fluoroplastic magnetic pump

CQB micro fluoroplastic magnetic pump
TECHNICAL DATA
Material: F46/HT200
DN: 12mm-50mm
PN: 16bar
Q: 0.8m³/h-12.5m³/h
H: 1.5m-32m
T: -20°C-200°C
P: 0.025kw-1.5kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price
Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • CQB fluoroplastic miniature magnetic pump is referred to as “CQB magnetic pump”, which adopts magnetic coupling transmission and does not have dynamic sealing point, so as to prevent the general shaft driving centrifugal pump shaft seal from running, blowing, dropping and leakage phenomenon of plastic magnetic pump type.
  • CQB fluorine plastic mini magnetic pump flow components using fluorine plastic and high purity of industrial ceramics, has excellent resistance to corrosion and sealing, so the product is widely used in chemical, acid, alkali, smelting, rare earth, pesticides, dyes, medicine, papermaking, electroplating, electrolysis, pickling, radio, into a foil, scientific research institutions, defense industry and other industries.
  • CQB fluoroplastic micro magnetic pump can transport medium: any concentration of acid, alkaline, oil, rare and precious liquid, toxic liquid, volatile chemical medium. In particular, flammable, leaky, explosive liquid chemical medium transport.

Applicable fields Model parameters

N Model Rev =2900r/min   Medium density=1000kg/m³
Flow Pump head η Inlet Outlet Npsh Power Weight
(m³/h) (m) (%) (mm) (mm) (m) (kw) (kg)
1 CQB16-12-50F 0.8 1.5 10 φ16 φ12 9 0.025 5
2 CQB15-15-65F 1 2.8 17 φ15 φ15 6 0.18 7
3 CQB20-15-75F 1.8 6 21 φ20 φ15 6 0.18 8
4 CQB25-20-100F 2.5 11 26 φ25 φ20 6 0.37 12
5 CQB25-20-160F 2 32 22 φ25 φ20 6 1.1 40
6 CQB32-20-110F 5.5 13 35 φ32 φ20 6 0.55 18
7 CQB32-20-125F 3.6 20 37 φ32 φ20 6 0.75 20
8 CQB40-25-120F 6.3 15 42 φ40 φ25 5 0.75 35
9 CQB40-25-130F 6.3 22 45 φ40 φ25 4 1.1 45
10 CQB40-25-125F 6.3 20 41 φ40 φ25 4.5 1.1 40
11 CQB40-40-100F 6 11 43 φ40 φ40 6 0.55 20
12 CQB40-40-125F 6.3 17.5 42 φ40 φ40 3.7 1.1 40
13 CQB50-32-125F 12.5 20 42 φ50 φ32 3.5 1.5 45

Installation dimensions Size chart

N Model Installation dimensions
Outside and installing size Inlet flange size Exit flange size
L S P F W T H h x c a b n-φd k g i n-φt
1 CQB16-12-50F 200 56 80 30 90 71 100 45 22 16 24 / / 12 17 / /
2 CQB15-15-65F 290 71 115 40 112 90 125 56 25 15 20 / / 15 20 / /
3 CQB20-15-75F 316 71 120 55 113 90 138 56 38 20 27 / / 15 20 / /
4 CQB25-20-100F 360 80 150 60 125 100 165 63 49 25 90 65 4-Ф11 20 90 65 4-Ф11
5 CQB32-20-110F 430 200 125 65 148 115 215 105 60 32 120 90 4-Ф13 20 90 65 4-Ф11
6 CQB32-20-125F 435 265 65 50 180 150 244 110 67 32 140 90 4-M12 20 100 75 4-Ф11
7 CQB40-25-120F 435 265 65 50 180 150 244 110 67 40 140 100 4-M12 25 100 75 4-Ф11
8 CQB40-25-125F 440 265 75 50 180 150 244 110 67 40 140 90 4-M12 25 100 75 4-Ф11
9 CQB40-40-125F 510 265 90 100 180 150 260 175 / 40 130 100 4-Ф13 40 130 100 4-Ф13
10 CQB50-32-125F 510 265 100 85 180 150 270 125 76 50 130 100 4-Ф13 32 120 90 4-Ф11
