Home > PRODUCTS > J41f fluorine lined stop valve

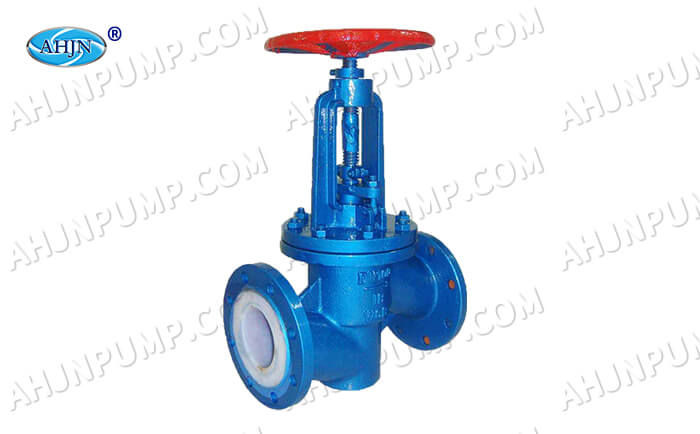

J41f fluorine lined stop valve

J41f fluorine lined stop valve

J41f fluorine lined stop valve

J41f fluorine lined stop valve
TECHNICAL DATA
Material: F46/HT200
DN: 25mm-100mm
PN: 16bar
Q: 2.5m³/h-100m³/h
H: -
T: -20°C-120°C
P: -

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price
Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • J41f-16 series fluorine-lined globe valves are also known as “J41F-16 steel fluorine-lined globe valves”. The valve body is made of carbon steel precision casting, and the valve stem and overcurrent components are made of fluorine-coated plastic with steel framework. They are designed for the opening and closing control of various highly corrosive media with extremely strong corrosion resistance.
  • J41f-16 fluorine lined globe valve has high pressure resistance and high reliability. It is widely used in conveying all kinds of strong corrosive medium.

Applicable fields Installation dimensions J41F-16衬氟截止阀结构

N Model/diameter L D D1 D2 b n-φd H H1 D0 weight/Kg
1 J41F-16-25 160 115 85 65 18 4-Ф14 255 275 120 9.4
2 J41F-16-32 180 135 100 75 20 4-Ф17.5 305 335 140 14.5
3 J41F-16-40 200 145 110 85 20 4-Ф17.5 325 355 140 18.5
4 J41F-16-50 230 160 125 110 23 4-Ф17.5 360 406 160 24
5 J41F-16-65 290 180 145 120 23 4-Ф17.5 370 410 160 32
6 J41F-16-80 310 195 160 135 24 4-Ф17.5 438 490 200 46
7 J41F-16-100 350 215 180 155 27 4-Ф17.5 460 500 280 65
