Home > CENTRIFUGAL PUMP > CMB-L wear resistant fluoroplastic magnetic pump

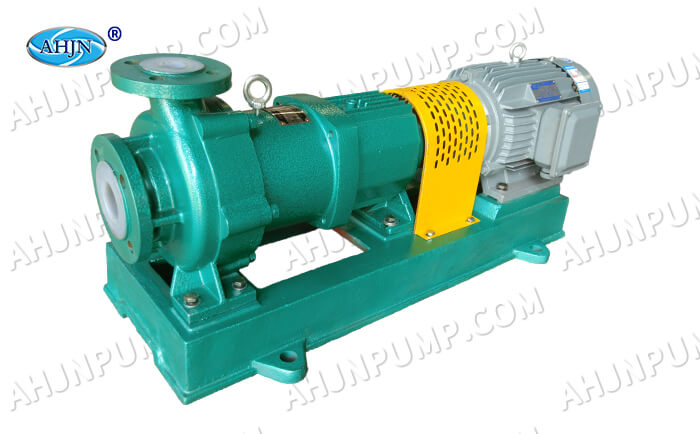

CMB-L wear resistant fluoroplastic magnetic pump

CMB-L wear resistant fluoroplastic magnetic pump

CMB-L wear resistant fluoroplastic magnetic pump

CMB-L wear resistant fluoroplastic magnetic pump
TECHNICAL DATA
Material: F46/HT200
DN: 20mm-125mm
PN: 16bar
Q: 2m³/h-200m³/h
H: 20m-80m
T: -20°C-200°C
P: 0.75kw-55kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price
Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • CMB-L idling liner fluorine magnetic pump, ANSYSICEM+CFD, CFX finite element analysis, fluid visual simulation technology was used to design high-performance hydraulic model, pump body and impeller, impeller and isolation sleeve design with solid particle barrier ring structure, reduce particle wear.
  • The supporting shaft adopts non-cantilever supporting structure with fixed rotating shaft wide fulcrum, which avoids the trouble of shaft breakage of shaft driving rotor, and has better stability. The reinforced sleeve made of non-metallic material completely eliminates the damage caused by magnetic eddy current heating and improves the operation reliability.
  • PLUSSSiC composite ceramics manufacture sliding bearing components, which are not only resistant to wear of solid particles, but also can withstand empty operation for 30min under the condition of pumping. CMB(L) is designed with long suspension structure with bearings, which can prevent high temperature of medium from affecting motor operation./li>
  • The pump grain resistance, resistance to dry grinding, high efficiency and energy saving, stable running, quiet low vibration, high reliability, long life and other similar fluorine plastic magnetic pump incomparable advantages, break through the traditional fluorine plastic magnetic pump use restrictions, is strong corrosive, toxic, volatile, flammable and explosive, organic solvent and precious liquid ideal conveying equipment of environmental protection.

Applicable fields Model parameters

N Model Rev=2900r/min   Medium density=1000kg/m³
Flow Pump head η Inlet Outlet Npshr Power Weight
(m³/h) (m) (%) (mm) (mm) (m) (kW) (kg)
1 CMB25-20-125L 2 20 24 ø25 ø20 2.0 0.75 55
2 CMB25-20-160L 2 32 22 ø25 ø20 2.0 1.1 60
3 CMB25-20-200L 2 50 20 ø25 ø20 2.0 2.2 85
4 CMB32-20-125L 3.6 20 19 ø32 ø20 2.0 1.1 60
5 CMB32-20-160L 3.6 32 27 ø32 ø20 2.0 1.5 70
6 CMB32-20-200L 3.6 50 24 ø32 ø20 2.5 3 100
7 CMB40-25-125L 6.3 20 36 ø40 ø25 2.5 1.5 65
8 CMB40-25-160L 6.3 32 33 ø40 ø25 2.5 2.2 75
9 CMB40-25-200L 6.3 50 29 ø40 ø25 2.5 5.5 120
10 CMB40-25-250L 6.3 80 25 ø40 ø25 2.5 7.5 165
11 CMB50-32-125L 12.5 20 47 ø50 ø32 2.5 2.2 70
12 CMB50-32-160L 12.5 32 43 ø50 ø32 2.5 4 120
13 CMB50-32-200L 12.5 50 40 ø50 ø32 2.5 7.5 155
14 CMB50-32-250L 12.5 80 35 ø50 ø32 2.5 11 220
15 CMB65-50-125L 25 20 58 ø65 ø50 2.5 4 115
16 CMB65-50-160L 25 32 50 ø65 ø50 2.5 5.5 135
17 CMB65-40-200L 25 50 45 ø65 ø40 2.5 11 190
18 CMB65-40-250L 25 80 40 ø65 ø40 2.5 18.5 270
19 CMB80-65-125L 50 20 54 ø80 ø65 3.0 5.5 105
20 CMB80-65-160L 50 32 52 ø80 ø65 3.0 11 170
21 CMB80-50-200L 50 50 46 ø80 ø50 3.0 18.5 230
22 CMB80-50-250L 50 80 43 ø80 ø50 3.5 30 360
23 CMB100-80-125L 100 20 63 ø100 ø80 3.5 11 175
24 CMB100-80-160L 100 32 50 ø100 ø80 3.5 18.5 235
25 CMB100-65-200L 100 50 46 ø100 ø65 3.5 30 350
26 CMB100-65-250L 100 80 43 ø100 ø65 4.0 45 480
27 CMB125-80-160L 160 32 60 ø125 ø80 4.0 30 410
28 CMB125-100-200L 200 50 55 ø125 ø100 4.5 55 590
