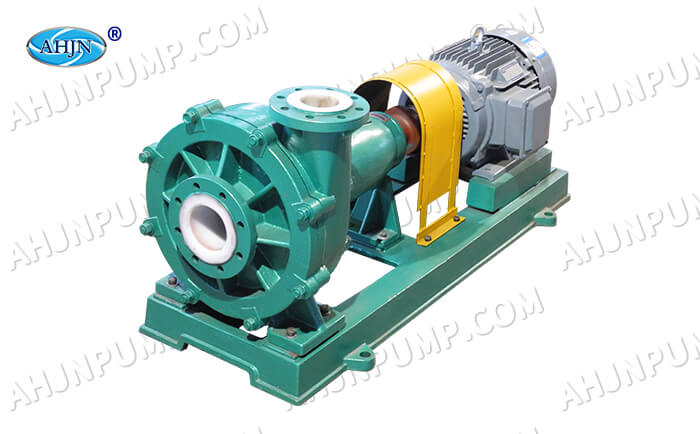

FMB-JNS corrosion resistance and abrasion resistance mortar pump

TECHNICAL DATA
Material:	UHMW-PE/HT200
DN:	25mm-300mm
PN:	16bar
Q:	3.6m³/h-1000m³/h
H:	5m-80m
T:	-20°C-120°C
P:	0.75kw-250kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price

Join Us On Whatsapp:Click it to Join in

General Overview

Fmb-jns wear-resistant and corrosion-resistant mortar pump is referred to as “fmb-jns mortar pump”. The flow passage parts are made of a new generation of corrosion-resistant and wear-resistant alloy in China at present. The pump has the outstanding advantages of excellent wear resistance, impact resistance, corrosion resistance and high temperature resistance. It is designed with JNS / silicon carbide semi cartridge radial static mechanical seal structure, which can adapt to various working conditions.
Fmb-jns wear-resistant and corrosion-resistant mortar pump is especially suitable for conveying acid, alkaline clear liquid or slurry; various corrosive mineral slurry in smelting industry; various organic acids, strong oxidants, various sewage in environmental protection industry, etc., with a wide range of applications.
Anhui Jiangnan Co., Ltd. adheres to the brand operation. The corrosion-resistant and wear-resistant pump and mortar pump manufactured by it have the advantages of wear resistance, impact resistance, corrosion resistance, outstanding high temperature resistance, stable and reliable operation, low noise, small vibration, long service life, etc.

Applicable fields Model parameters

N	Model	Rev=2900r/min Medium density=1000kg/m ³
		Flow	Pump head	η	Inlet	Outlet	Npsh	Power	Weight
		(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kw)	(kg)
1	FMB-JNS32-25-125	3.6	20	18	Ф32	Ф25	3	1.5	95
2	FMB-JNS32-25-160	3.6	32	13	Ф32	Ф25	3	2.2	105
3	FMB-JNS40-32-125	6.3	20	21	Ф40	Ф32	3	2.2	110
4	FMB-JNS40-32-160	6.3	32	25	Ф40	Ф32	3	3	110
5	FMB-JNS50-32-125	12.5	20	42	Ф50	Ф32	3	3	110
6	FMB-JNS50-32-160	12.5	32	40	Ф50	Ф32	3	4	120
7	FMB-JNS50-40-200	12.5	50	30	Ф50	Ф40	5	7.5	170
8	FMB-JNS65-50-125	25	20	53	Ф65	Ф50	3.5	4	130
9	FMB-JNS65-50-160	25	32	51	Ф65	Ф50	3.5	7.5	145
10	FMB-JNS65-50-200	25	50	46	Ф65	Ф50	3.5	11	210
11	FMB-JNS65-50-250	25	80	30	Ф65	Ф50	3.5	22	250
12	FMB-JNS80-65-125	50	20	56	Ф80	Ф65	4	7.5	150
13	FMB-JNS80-65-160	50	32	55	Ф80	Ф65	4	11	180
14	FMB-JNS80-65-200	50	50	49	Ф80	Ф65	4	18.5	265
15	FMB-JNS80-65-250	50	80	49	Ф80	Ф65	4	30	450
16	FMB-JNS100-80-125	100	20	57	Ф100	Ф80	4.5	15	240
17	FMB-JNS100-80-160	100	32	60	Ф100	Ф80	4.5	18.5	290
18	FMB-JNS100-80-200	100	50	56	Ф100	Ф80	5	30	440
19	FMB-JNS125-100-125	150	20	60	Ф125	Ф100	5.5	18.5	480
20	FMB-JNS125-100-160	150	32	58	Ф125	Ф100	5.5	30	520
21	FMB-JNS125-100-200	150	40	55	Ф125	Ф100	5.5	37	530

N	Model	Rev=1450r/min Medium density=1000kg/m ³
		Flow	Pump head	η	Inlet	Outlet	Npsh	Power	Weight
		(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kw)	(kg)
1	FMB-JNS50-32-125	6.3	5	37	Ф50	Ф32	3	0.75	80
2	FMB-JNS50-32-160	6.3	8	35	Ф50	Ф32	3	0.75	80
3	FMB-JNS50-40-200	6.3	12.5	35	Ф50	Ф40	5	1.5	115
4	FMB-JNS65-50-125	12.5	5	45	Ф65	Ф50	3.5	1.1	110
5	FMB-JNS65-50-160	12.5	8	43	Ф65	Ф50	3.5	1.1	115
6	FMB-JNS65-50-200	12.5	12.5	39	Ф65	Ф50	3.5	2.2	160
7	FMB-JNS65-50-250	12.5	20	37	Ф65	Ф50	3.5	4	240
8	FMB-JNS65-50-315	12.5	32	39	Ф65	Ф50	3.5	7.5	270
9	FMB-JNS80-65-125	25	5	48	Ф80	Ф65	4	1.5	130
10	FMB-JNS80-65-160	25	8	53	Ф80	Ф65	4	1.5	135
11	FMB-JNS80-65-200	25	12.5	45	Ф80	Ф65	4	3	170
12	FMB-JNS80-65-250	25	20	42	Ф80	Ф65	4.5	5.5	270
13	FMB-JNS80-50-315	30	32	39	Ф80	Ф50	5	7.5	295
14	FMB-JNS80-65-315	25	32	39	Ф80	Ф65	5	11	295
15	FMB-JNS80-65-400	25	50	35	Ф80	Ф65	5	22	480
16	FMB-JNS100-80-125	50	5	52	Ф100	Ф80	5	1.5	165
17	FMB-JNS100-80-160	50	8	55	Ф100	Ф80	5	2.2	220
18	FMB-JNS100-80-200	50	12.5	52	Ф100	Ф80	5	4	340
19	FMB-JNS100-80-250	50	20	50	Ф100	Ф80	5	7.5	390
20	FMB-JNS100-80-315	50	32	46	Ф100	Ф80	5	15	450
21	FMB-JNS100-80-400	50	50	42	Ф100	Ф80	5	22	520
22	FMB-JNS125-100-160	100	8	56	Ф125	Ф100	5	11	480
23	FMB-JNS125-100-200	100	12.5	54	Ф125	Ф100	5	15	500
24	FMB-JNS125-100-250	100	20	52	Ф125	Ф100	5	18.5	550
25	FMB-JNS125-100-315	100	32	49	Ф125	Ф100	5.5	30	680
26	FMB-JNS125-100-400	100	50	46	Ф125	Ф100	5.5	37	720
27	FMB-JNS150-125-200	200	12.5	56	Ф150	Ф125	5.5	22	720
28	FMB-JNS150-125-250	200	20	53	Ф150	Ф125	5.5	30	780
29	FMB-JNS150-125-315	200	32	48	Ф150	Ф125	6	45	850
30	FMB-JNS150-125-400	200	50	43	Ф150	Ф125	6	75	1100
31	FMB-JNS200-150-250	400	20	56	Ф200	Ф150	7	55	890
32	FMB-JNS200-150-315	400	32	59	Ф200	Ф150	7	75	1120
33	FMB-JNS200-150-400	400	50	62	Ф200	Ф150	7	110	1480
34	FMB-JNS250-200-250	650	20	68	Ф200	Ф150	7.5	75	1150
35	FMB-JNS250-200-315	650	32	66	Ф200	Ф150	7.5	110	1620
36	FMB-JNS250-200-400	650	50	65	Ф200	Ф150	7.5	132	1880
37	FMB-JNS300-250-315	1000	32	70	Ф300	Ф250	8	160	2150
38	FMB-JNS300-250-400	1000	50	66	Ф300	Ф250	8	250	2800

Installation dimensions Size chart

Model	Outside and installing size											Inlet flange size				Exit flange size
Model	L	L1	S	P	f	W	T	H	h	X	D	c	a	b	n-φd	k	g	i	n-φt
FMB-JNS32-25-125	827	775	485	185	100	370	320	347	197	74.5	24	32	140	100	4-φ18	25	115	75	4-φ13.5
FMB-JNS32-25-160	985	880	600	182	102	385	335	408	232	90	24	32	140	100	4-φ18	25	115	75	4-φ13.5
FMB-JNS40-32-160	985	880	600	182	102	385	335	416	232	93.5	24	40	150	110	4-φ18	32	140	100	4-φ18
FMB-JNS50-32-160	990	880	600	182	102	385	335	416	232	93.5	24	50	165	125	4-φ18	32	140	100	4-φ18
FMB-JNS50-40-200	1100	950	650	205	120	435	385	450	240	108	25	50	165	125	4-φ18	40	150	110	4-φ18
FMB-JNS65-50-160	1100	630	650	200	113	435	385	407	232	95	25	65	185	145	4-φ18	50	165	125	4-φ18
FMB-JNS65-50-200	1255	1128	740	228	120	500	435	470	260	105	25	65	185	145	4-φ18	50	165	125	4-φ18
FMB-JNS65-50-250	1340	1190	800	230	130	480	530	585	325	165	25	65	185	145	4-φ18	50	165	125	4-φ18
FMB-JNS65-50-315	1165	1110	740	230	130	530	480	585	325	165	25	65	185	145	4-φ18	50	165	125	4-φ18
FMB-JNS80-65-160	1245	1130	740	233	125	500	435	470	260	110	25	80	200	160	8-φ18	65	185	145	4-φ18
FMB-JNS80-65-200	1320	1140	740	237	130	490	440	480	260	125	25	80	200	160	8-φ18	50	165	125	4-φ18
FMB-JNS80-50-250	1520	1465	940	264	125	600	550	605	325	170	25	80	200	160	8-φ18	50	165	125	4-φ18
FMB-JNS80-50-315	1181	1140	740	228	125	490	440	585	305	170	25	80	200	160	8-φ18	50	165	125	4-φ18
FMB-JNS80-65-315	1340	1110	740	250	135	530	480	595	325	170	25	80	200	160	8-φ18	65	185	145	4-φ18
FMB-JNS80-65-400	1515	1340	840	300	170	620	560	745	410	210	25	80	200	160	8-φ18	65	185	145	4-φ18
FMB-JNS100-80-160	1320	1130	740	245	139	500	435	470	260	110	25	100	220	180	8-φ18	80	200	160	8-φ18
FMB-JNS100-80-200	1495	1350	945	264	130	590	535	530	300	125	25	100	220	180	8-φ18	80	200	160	8-φ18
FMB-JNS100-80-315	1400	1350	940	264	144	540	490	630	350	160	25	100	220	180	8-φ18	80	200	160	8-φ18
FMB-JNS100-80-400	1515	1400	940	218	150	600	550	680	400	238	24	100	220	180	8-φ18	80	200	160	8-φ18
FMB-JNS125-100-250	1480	1350	940	276	156	540	490	575	325	165	24	125	250	210	8-φ18	100	220	180	8-φ18
FMB-JNS125-100-315	1830	1500	940	468	328	620	550	760	440	190	25	125	250	210	8-φ18	100	220	180	8-φ18
FMB-JNS125-100-400	1830	1500	940	475	335	620	550	910	475	223	25	125	250	210	8-φ18	100	220	180	8-φ18
FMB-JNS150-125-250	1610	1400	940	285	190	600	550	600	350	188	24	150	285	240	8-φ22	125	250	210	8-φ18
FMB-JNS150-125-315	1950	1500	940	496	356	620	550	945	475	223	25	150	285	240	8-φ18	125	250	210	8-φ18
FMB-JNS150-125-400	2070	1620	1060	522	362	670	600	1012	510	270	28	150	285	240	8-φ18	125	250	210	8-φ18
FMB-JNS200-150-250	1840	1620	1060	376	216	670	600	745	460	213	28	200	340	295	12-φ22	150	285	240	8-φ18
FMB-JNS200-150-315	2070	1620	1060	528	368	670	600	1022	510	270	28	200	340	295	12-φ22	150	285	240	8-φ18
FMB-JNS200-150-400	2338	1890	1240	528	368	790	720	1042	530	270	36	200	340	295	12-φ22	150	285	240	8-φ18
FMB-JNS250-200-250	1955	1620	1060	400	240	670	600	806	510	244	28	250	405	355	12-φ22	200	340	295	12-φ22
FMB-JNS250-200-315	2385	1890	1240	534	374	790	720	1102	580	305	36	250	405	355	12-φ22	200	340	295	12-φ22
FMB-JNS250-200-400	2420	1890	1240	535	375	790	720	1102	580	305	36	250	405	355	12-φ22	200	340	295	12-φ22
